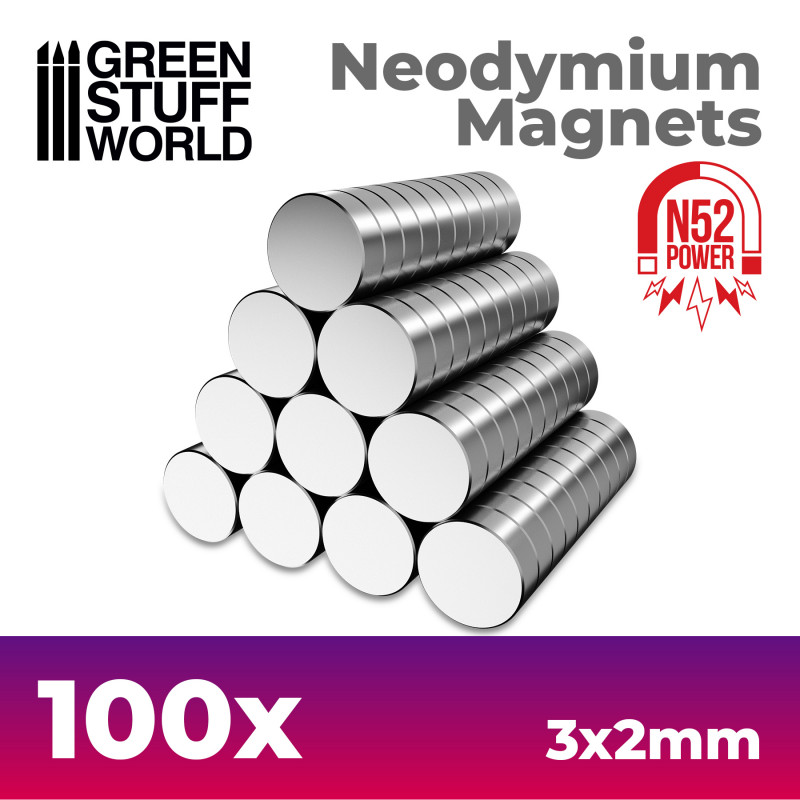

Neodymium Magnets 3x2mm - 100 units (N52)

Neodymium Magnets 3x2mm - 100 units (N52)
  Zoom
 Neodymium Magnets 3x2mm - 100 units (N52)Neodymium Magnets 3x2mm - 100 units (N52)
Our Price:  €11.95
(Inc. 23% VAT)Earn 11 Loyalty Points
  (2 Reviews)

Availability:



In stock, immediate despatch

+


SKU:  8436554367634ES-9264
Brand:  Green Stuff World

Neodymium Magnets

Diameter: 3mm (1/8')
Thickness: 2mm (1/12')
Quantity: 100

Magnetisation: N52
Pull Forces: 252gr (magnet to magnet) **
Material: NdFeB
Coating: Nickel Plated (Ni-Cu-Ni)

Neodymium Magnet is the strongest type of permanent magnet commercially available. They have replaced other types of magnet in the many applications in modern products that require strong permanent magnets.

The references N35 and N52 are a measurement for the quality of the magnet material. The higher the grade (the number following the 'N'), the stronger the magnet. These will explain two things:
- How much "magnetic energy" per volume is contained in this magnet material
- Up to what temperature the magnet can be used

Magnets that begin with an "N" should be used up to 80°C (176°F).
The highest grade of neodymium magnet currently available is N52.

If you take any two magnets of different sizes and magnetisation from our range, the difference in their strength is more due to the differences in their volume than the differences in their magnetisation. That's why the larger magnet is mostly the stronger magnet, even when its magnetisation classification is somewhat smaller.

** Pull Forces: Expected pull forces based on extensive product testing. The Surface Field data is only valid for points along the center axis of the magnet, and assumes a single magnet in free space.

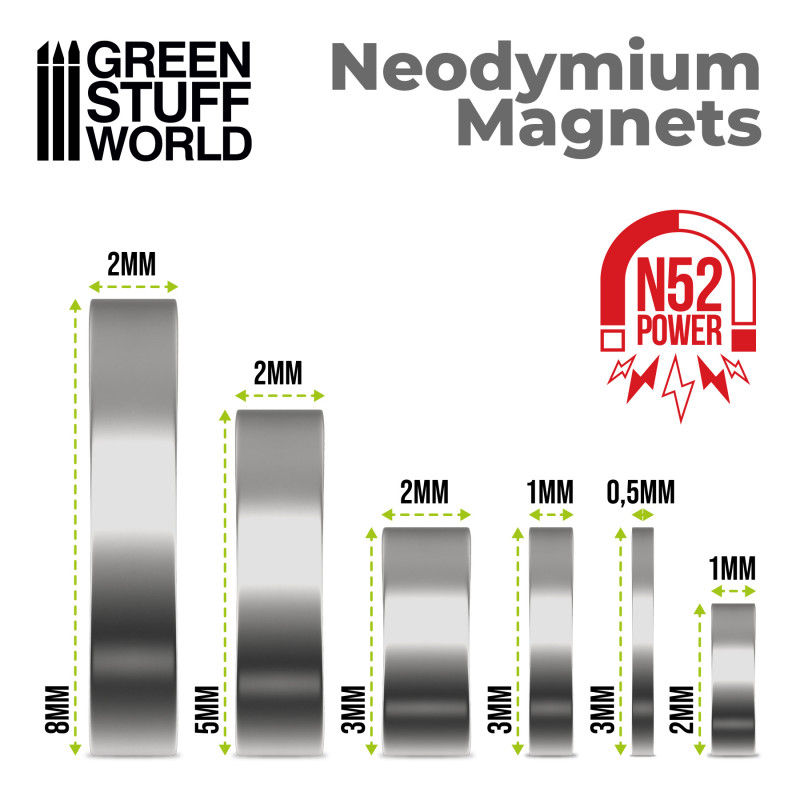

If you are planning to use them with wargames and miniatures we will recommend you as follows:

- Neodymium Magnet - 3x0.5mm, for exchanging weapons, heads, arms, etc ...
- Neodymium Magnet - 3x1mm, for exchanging weapons, heads, arms, etc ...
- Neodymium Magnet - 3x2mm, for plastic miniatures bases.
- Neodymium Magnet - 5x2mm, for metal miniatures bases.

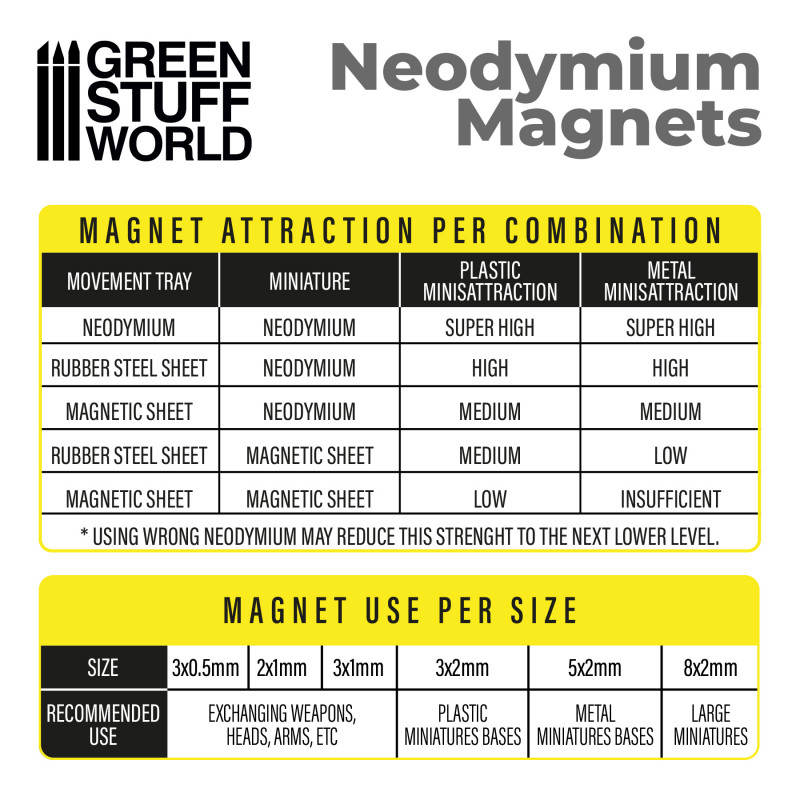

MAGNET ATTRACTION COMBINATION

Movement Tray

Miniature

PLASTIC Minisattraction

 METAL Minisattraction

Neodymium

Neodymium

Super High

Super High

Rubber Steel Sheet

Neodymium

High

High

Magnetic Sheet

Neodymium

Medium

Medium

Rubber Steel Sheet

Magnetic Sheet

Medium

Low

Magnetic Sheet

Magnetic Sheet

Low

Insufficient

* Using wrong Neodymium may reduce this strength to the next lower level.



MAGNETS:
DANGER: KEEP AWAY FROM CHILDREN AND PETS. Magnets are not toys. The magnets pose a risk of death to small children, who may swallow them. Risk of injury: you may bruise your skin if it is caught between the magnet and a metal object. Magnets must not be soldered or welded - the NdFeB material is highly flammable. Neodymium magnets may break if they collide or fall to the ground - the slivers of a magnet normally have sharp edges. Powerful magnets can damage technical equipment and storage media. People with pacemakers or a defibrillator are particularly at risk. Coatings contain nickel and should not be handled with bare hands if you have a nickel allergy. If neodymium magnets are heated above 80C, they lose their magnetic effect.
